MATEKSYS XCLASS PDB FCHUB-12S

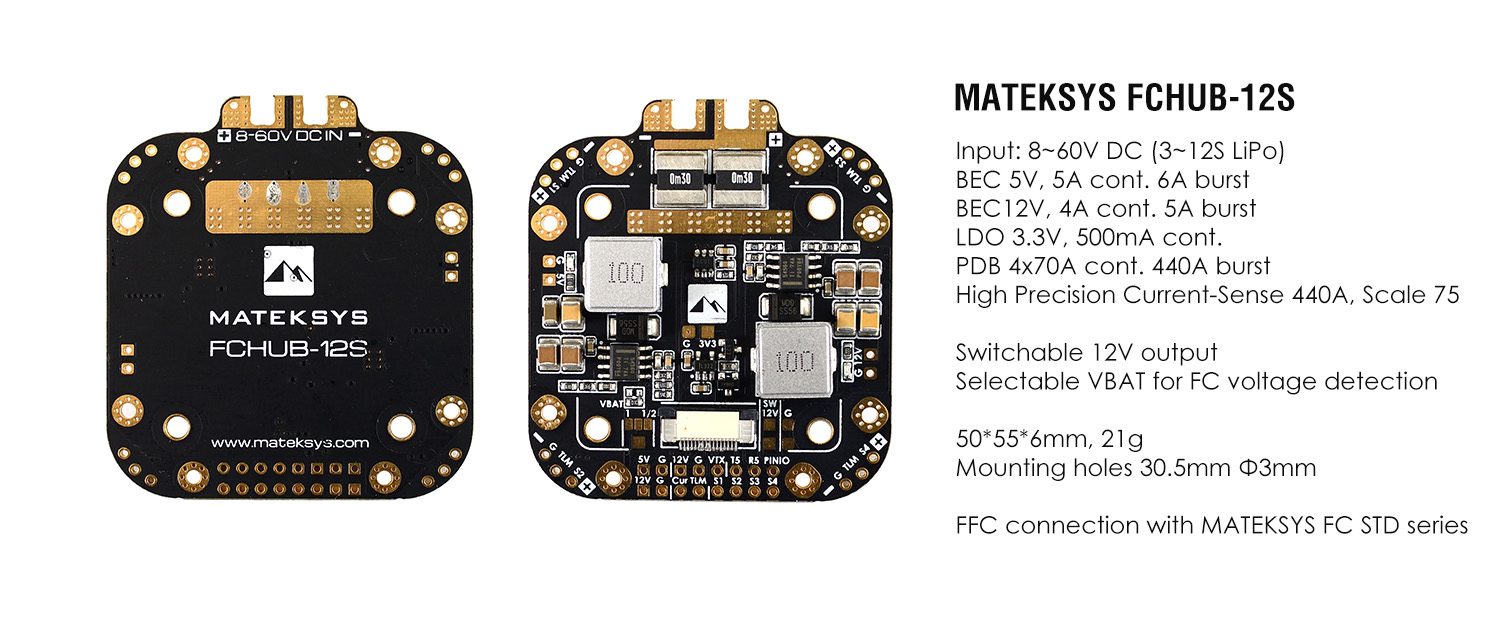

XCLASS PDB FCHUB-12S
Designed specificaly for XClass Quad. supports 8~60V DC input, 5V 5A and 12V 4A regulators, high precision current sense up to 440A range.

PDB
Input voltage range: 8~60V (3~12S LiPo)
4x70A cont, 4x110A burst
4x ESC power /signal/ telemetry pads
Current Senor: 440A, 3.3V ADC, Scale 75
2x LED indicators for 5V, 12V

FFC connection
Compatible with MATEKSYS FC F405-STD, F722-STD
VTX: Video Transmitter signal
T5 & R5: TX5 and RX5 of F405-STD/F722-STD

BEC 5V output (5V pad)
Voltage: 5.0 +/- 0.1VDC
Continuous current 5 Amps, Max.6A
Short-circuit tolerant (2 seconds)
Overcurrent protection & self-recovery

BEC 12V output (12V pad)
Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V)
Continuous current 4 Amps, Max.5A
Input voltage<12V, Output voltage = Input voltage
Probably there is audible sound in the BEC12V inductor when Input voltage<12V
Short-circuit tolerant (2 seconds)
Overcurrent protection & self-recovery

Switchable 12V output (SW12V pad)
12V ON/OFF can be switched via PINIO
can be use for powering VTX,LED etc.

BEC 3.3V output
Linear Regulator
Continuous current: 500mA

Physical
Mounting: 30.5 x 30.5mm, Φ3mm
Dimensions: 55 x 50 x 6 mm
Weight: 21g
